Enhanced crosswalk safety and visibility
CrossGuard Mesina
CrossGuard Mesina combines intelligent pedestrian detection, adaptive lighting and active warning signals in one connected crosswalk safety system.
Urbio / Products / Luminaires / Mesina
Mesina Luminaires
Lightning reimagined for
modern cities.
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
Lightning reimagined for
modern cities.
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
Lighting Series: Smart Luminaires
Collection: Urbio Mesina
LED Quantity: 24 / 36
LED Type: 5050 series LED
CCT: 3000 K to 5700 K ±10%
Distribution Angle: 138°
Protection: IP67 / IK09
Lifetime: 5 year warranty of 100,000 functioning hours
MESINA is URBIO’s high-performance smart LED luminaire range, purpose-built for modern Smart City lighting. Available in three sizes (M, L, XL), it offers integration with Lighting AI, extensive sensor and connectivity options, and industry-leading energy efficiency, making it ideal for streets, parks and highways. Made in the European Union.
CorssGuard Mesina
Select Crossguard Configuration
Mesina Luminaire Variants
Compatible Accessories
Crossguard Multi Specifications

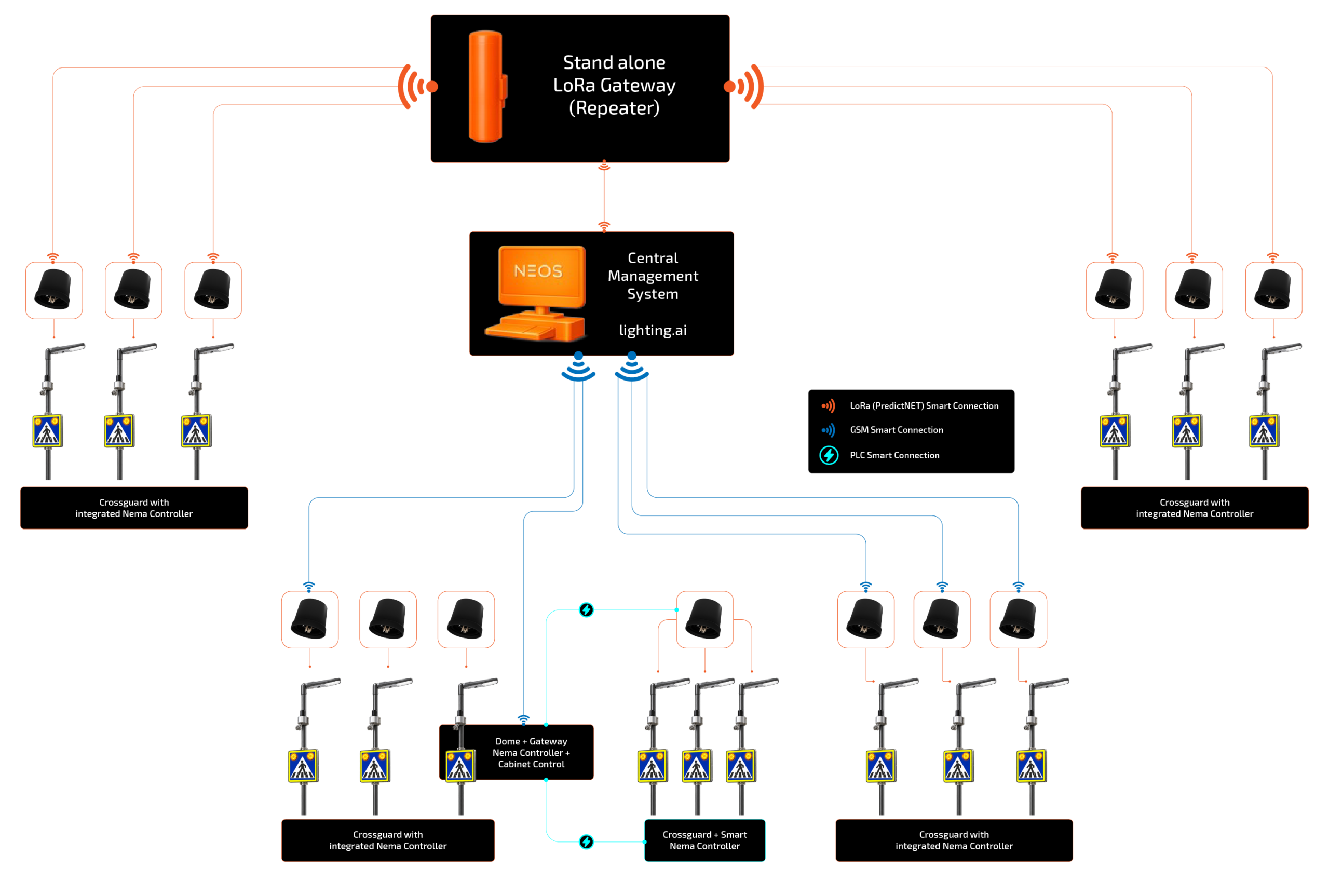

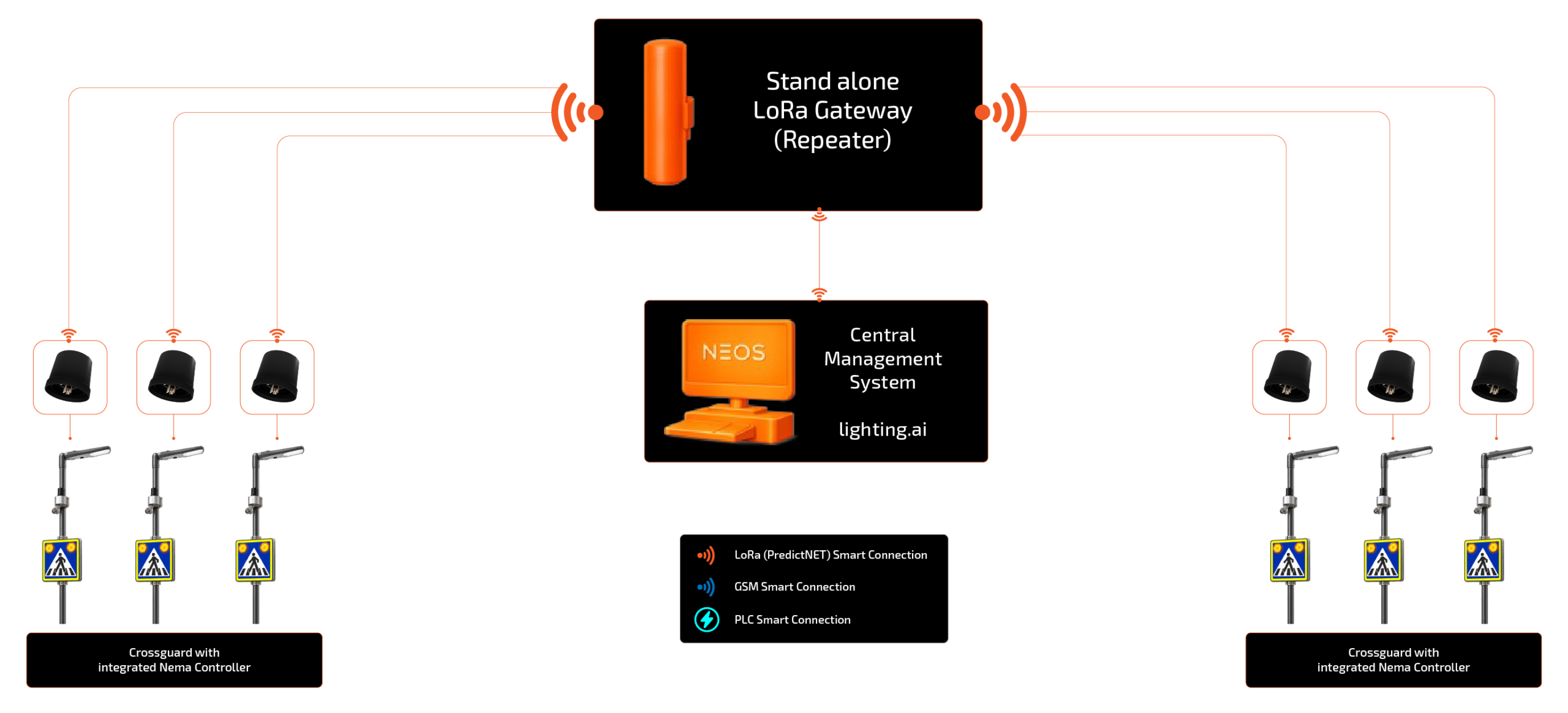

System Configution Schematics

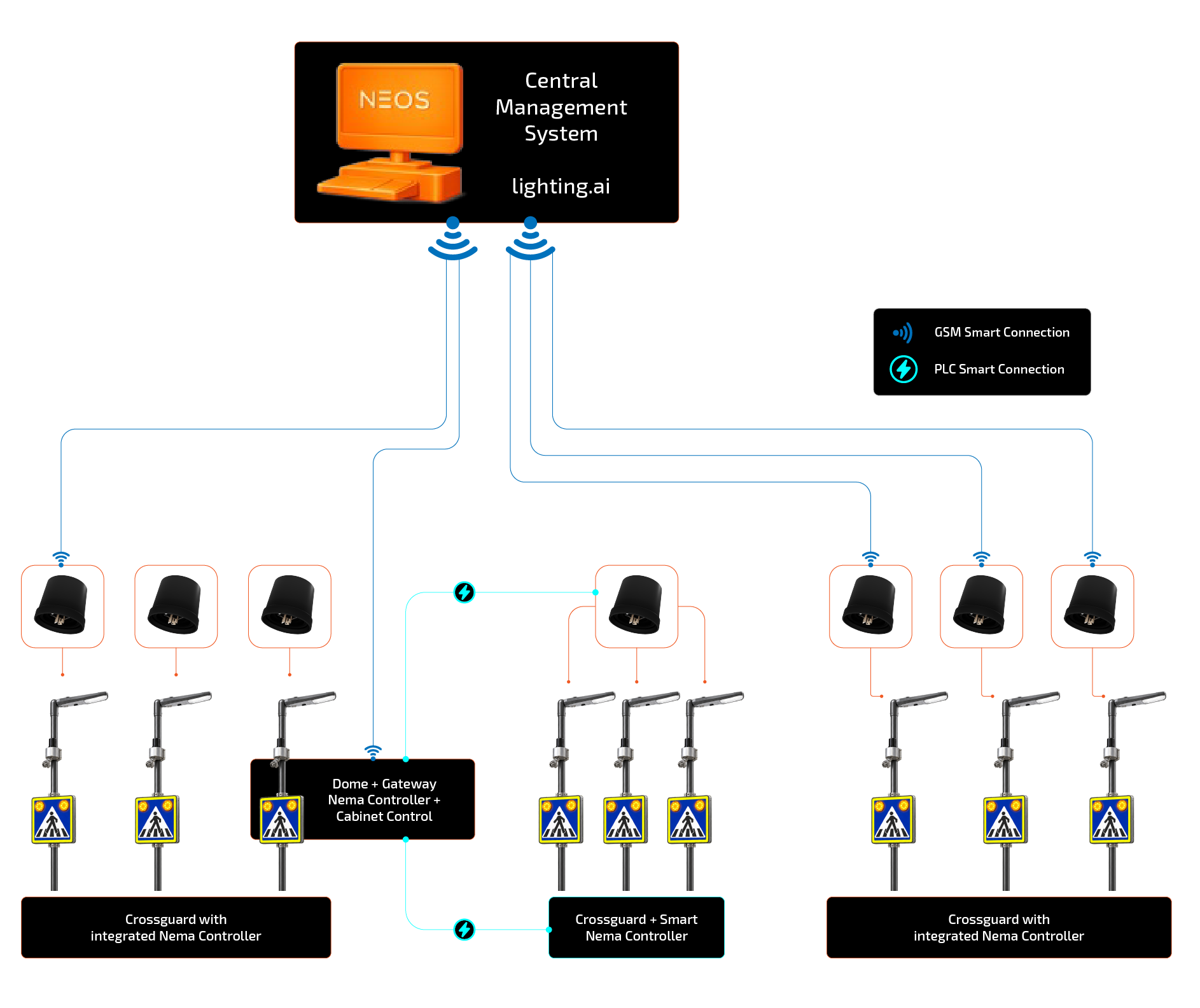

CrossGuard System Configuration
Urbio intelligence for crosswalks

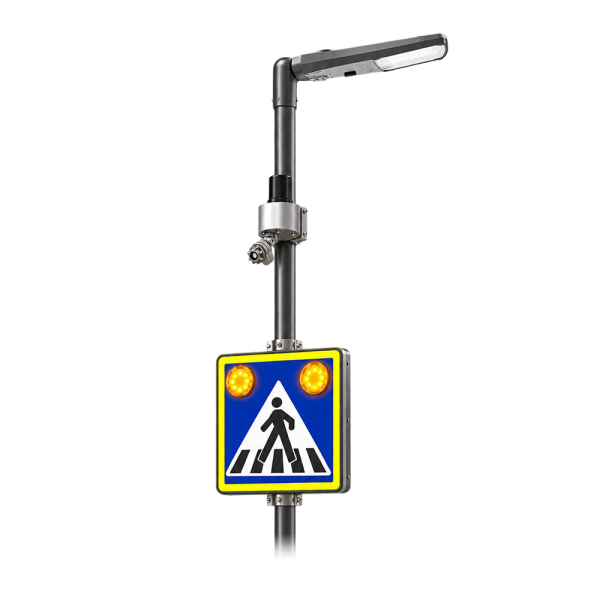

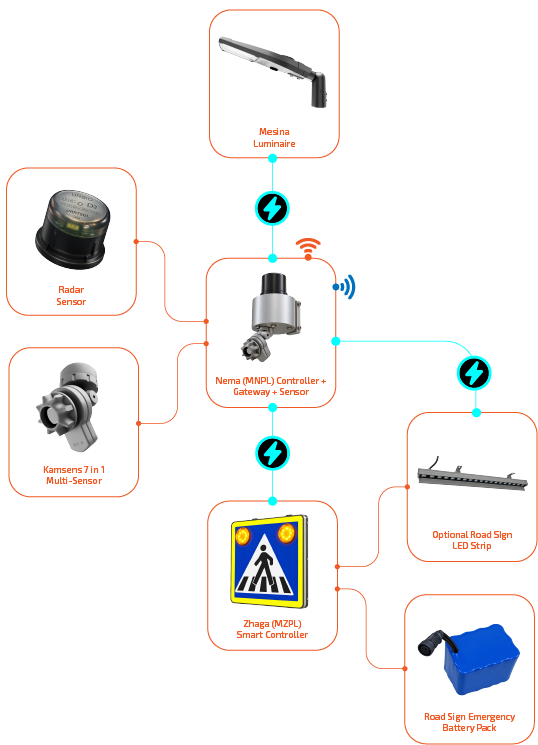

CrossGuard Mesina is a modular smart-crossing system built around three connected elements: the Hi-Vis pedestrian road sign with warning blinkers, the central NEMA control box with sensor, and a single Mesina street-lighting luminaire.

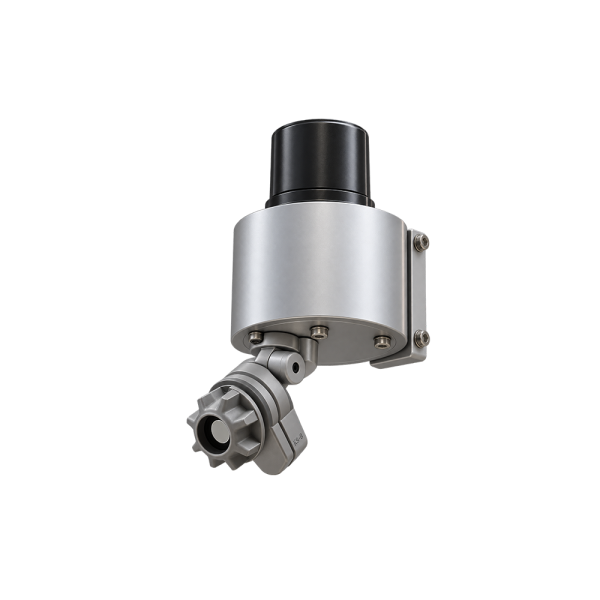

At the center of the system is the NEMA controller—the component that makes CrossGuard genuinely intelligent. Depending on project requirements, it can be equipped with LoRa, PLC, GSM and Bluetooth communication capabilities, and paired with either a KAMSENS 7-in-1 Multi-Sensor or a radar sensor.

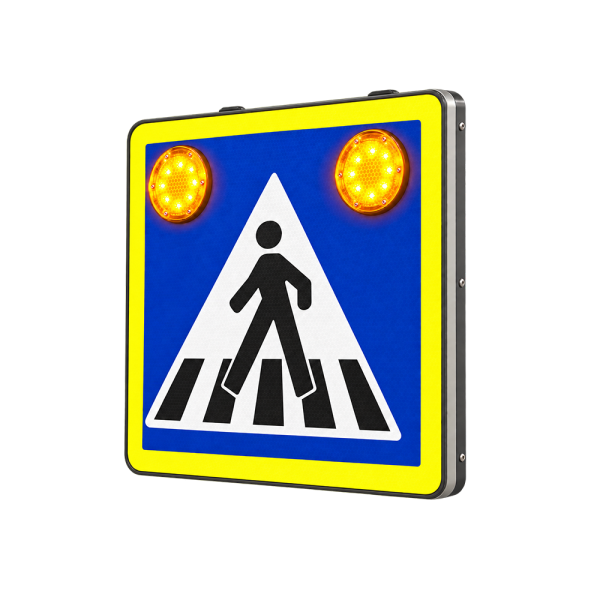

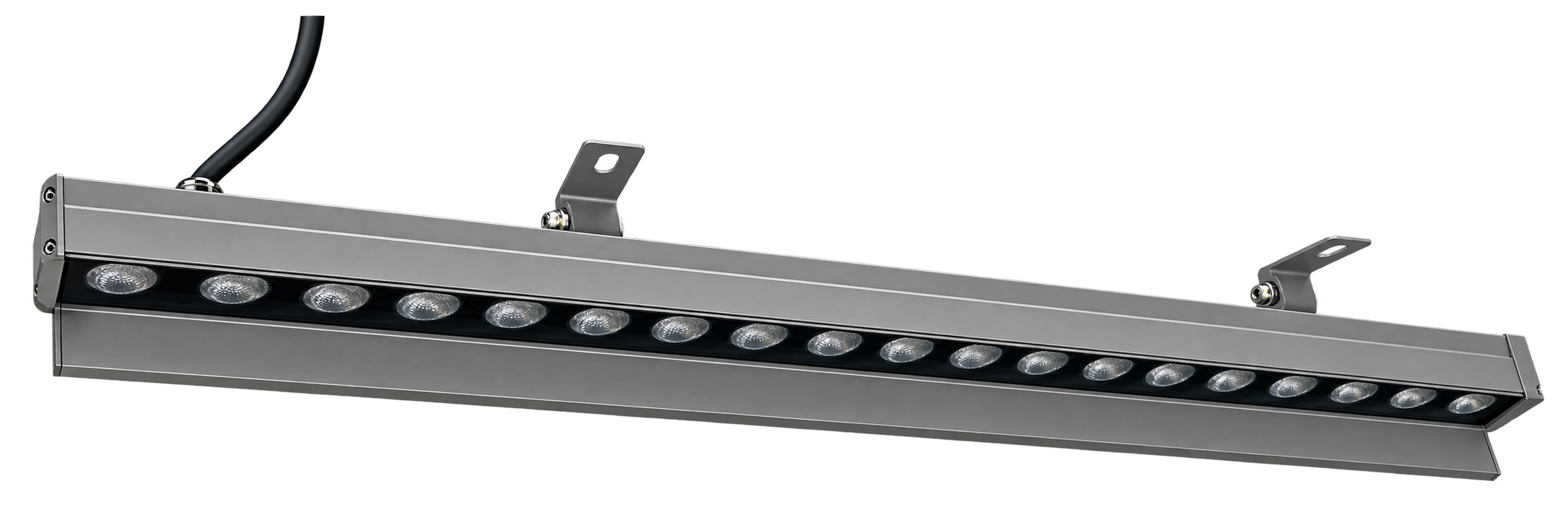

The Hi-Vis road sign provides active visual warning through its integrated blinkers. A backup battery pack maintains operation during a power outage, while an optional LED strip can provide continuous night-time illumination for increased sign visibility.
CrossGuard Mesina uses one Mesina luminaire, selected in M, L or XL configuration according to the crossing geometry, mounting height, traffic volume and required lighting performance.
Connected to the Lighting AI platform via LoRa or GSM, the controller receives real-time sensor data and processes commands locally. It then communicates through PLC with the warning sign and Mesina luminaire, adjusting light output and, where the project configuration allows, colour temperature. This ensures optimal pedestrian-crossing visibility in changing traffic, weather and ambient-light conditions while improving road-user safety and reducing unnecessary energy consumption.

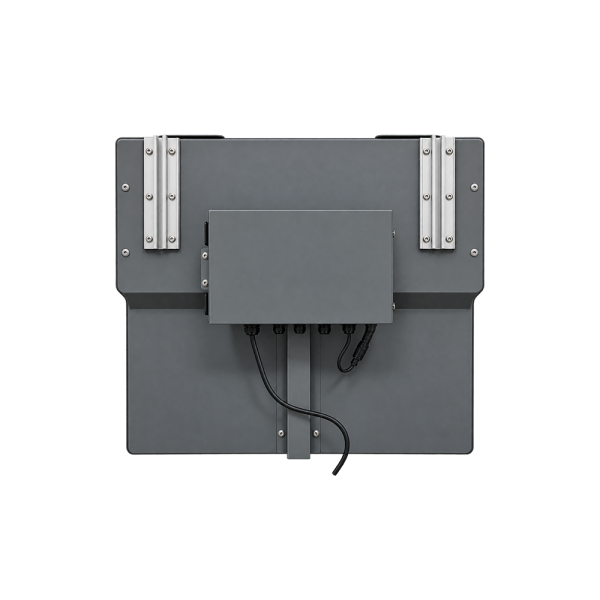

Road Sign Specifications
| Specification | Road Sign |
|---|---|
| Dimensions | 650 × 650 mm |
| Construction Material | Aluminium |
| Mounting System | 60–80 mm / 35–50 mm |
| Finishing | Reflective film |
| Battery Capacity | 88.8 Wh |
| Battery Technology | Li-Ion |
| LED Strip Power | 9 W |
| LED Strip Housing | Aluminium |
| LED Strip Efficiency | 100 lm/W |
| Protection Degree | IP65 / IK10 |
Blinkers Specifications
| Specification | Blinker |
|---|---|
| Power | 2 W |
| Input Voltage | 12 VDC |
| Housing | PC / Aluminium |
| Dimensions | 125 mm |
| Number of LEDs | 60 pcs. |
Mesina Luminaire Specifications
| Specification | M | L | XL |
|---|---|---|---|
| Power | 5–40 W | 40–90 W | 90–180 W |
| LED Quantity | 24 / 36 pcs. | 48 / 72 pcs. | 80 / 120 pcs. |
| LED Type | 5050 series | 5050 series | 5050 series |
| CCT | 2700 K / 3000 K / 4000 K / 5700 K | 2700 K / 3000 K / 4000 K / 5700 K | 2700 K / 3000 K / 4000 K / 5700 K |
| CRI | >70 / >80 | >70 / >80 | >70 / >80 |
| Luminous Flux | 825–7,400 lm | 6,800–17,370 lm | 14,100–30,800 lm |
| Luminaire Efficacy | 165–185 lm/W | 170–193 lm/W | 141–191 lm/W |
| Nominal Voltage | 220–240 Vac | 220–240 Vac | 220–240 Vac |
| Power Factor | ≥ 0.95 | ≥ 0.95 | ≥ 0.95 |
| Operating Temperature | -40°C to +55°C | -40°C to +55°C | -40°C to +55°C |
| Protection | IP66 / IP67 / IK09 / IK10 | IP66 / IP67 / IK09 / IK10 | IP66 / IP67 / IK09 / IK10 |
| Surge Protection | SPD 10 kV / SPD 20 kV | SPD 10 kV / SPD 20 kV | SPD 10 kV / SPD 20 kV |
| Lifetime | 100,000 h | 100,000 h | 100,000 h |
| Warranty | 5 years | 5 years | 5 years |
| Housing | Die-cast aluminium | Die-cast aluminium | Die-cast aluminium |
| Optical Diffuser | Heat-resistant glass | Heat-resistant glass | Heat-resistant glass |
| Lens | PMMA / PC | PMMA / PC | PMMA / PC |
| Weight | 3.6 kg | 6.5 kg | 8 kg |
| Dimensions | 435 × 245 × 75 mm | 600 × 330 × 90 mm | 690 × 335 × 90 mm |
Central Command Unit Specifications
| Specification | Central Unit |
|---|---|
| Communication Technology with CMS | LoRa / PLC / GSM |
| Detection Technology | Optical / Radar |
| Types of Detection | Movement / Environment |
| Number of Sensors | 2–4 pcs. |
| Housing | PMMA |
Certifications
Downloads
Technical documentation references key European standards, including EN 60598-1, EN 60598-2-3, EN 62031, EN 55015, EN 61547 and EN 62262.
Mesina Compatible Accessories
Smart Connectivity & Renewable Energy Ready
Discover a +, high-performance LED
luminaire range, designed for the
future of Smart-Cities.
Engineered for precision. Designed for safer roads.
behind Urbio’s safe & smart
CrossGuard systems.
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
CrossGuard FEATURES
CrossGuard FEATURES
Intelligent Detection
Pedestrian & Traffic Detection

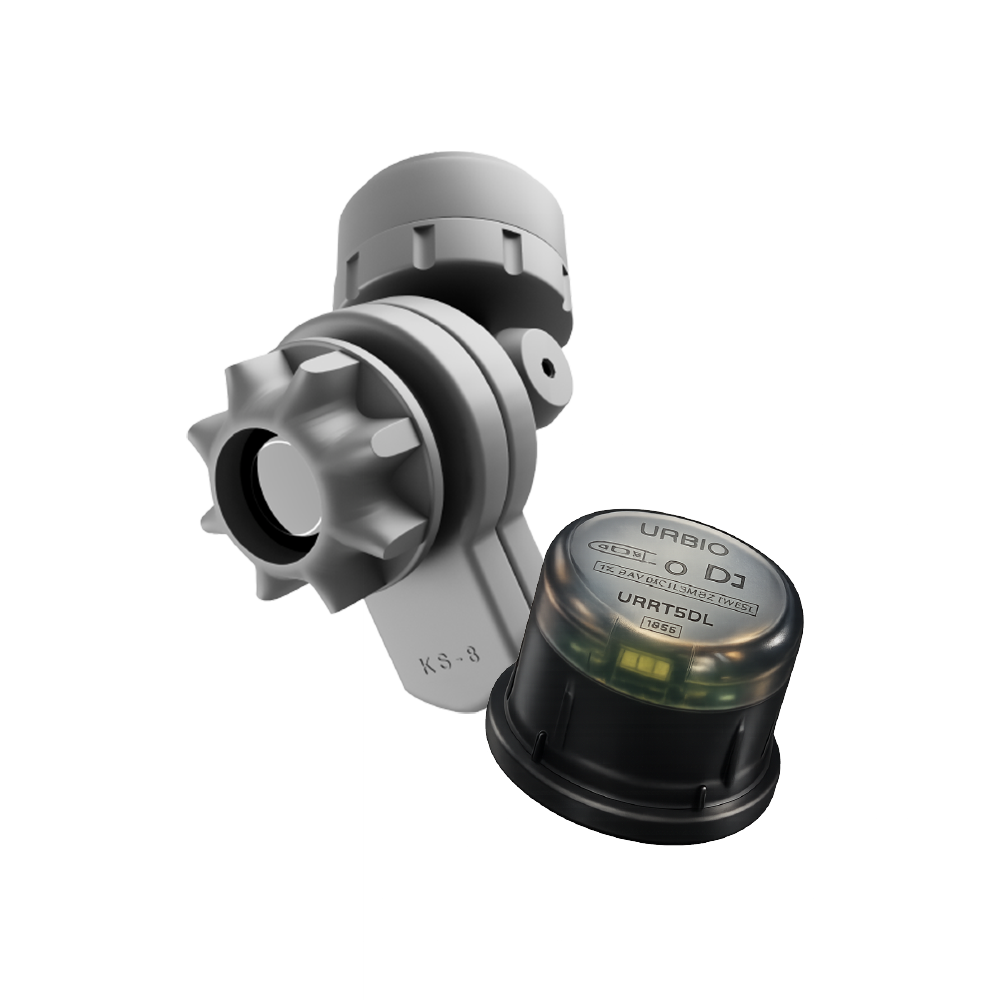

Using either the KAMSENS 7-in-1 Multi-Sensor or a radar sensor, CrossGuard accurately detects approaching vehicles and pedestrians waiting near or already crossing the road.
Adaptive Safety Lighting
Automatic Crosswalk Lighting Adaptation
Configured in advance through Lighting AI, CrossGuard automatically applies the appropriate lighting response based on real-time sensor input, traffic activity, ambient light and, with KAMSENS, weather conditions.
Connected Intelligence
Controlled With Lighting AI
CrossGuard connects to Lighting AI through LoRa or GSM, giving operators a central platform to configure operating rules, supervise system status and manage adaptive crossing-lighting behaviour remotely.
When CrossGuard is equipped with the KAMSENS 7-in-1 Multi-Sensor, it can identify changing weather conditions such as clear skies, fog, rain and snow. The central controller uses this information to apply the appropriate lighting strategy, maintaining maximum pedestrian-crossing visibility in challenging conditions and helping drivers recognize pedestrians earlier.
MESINA Smart Capabilities
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
MyNeos lighting.ai
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
Nema Based Infrastructure
Predictnet (LoRa) + PLC
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
PIR sensor – basic motion lighting adaptation
Radar sensor – advanced motion lighting adaptation
Kamsens multi-sensor – multiple adapdation points
Weather condition sensors – rain / fog / snow adaptation
Photocell sensors – dusk to dawn adaptation
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
PIR sensor – basic motion lighting adaptation
Radar sensor – advanced motion lighting adaptation
Kamsens multi-sensor – multiple adapdation points
Weather condition sensors – rain / fog / snow adaptation
Photocell sensors – dusk to dawn adaptation
FUNCTIONAL Features
MESINA is URBIO’s durable, high-performance LED luminaire range, designed for Smart-City Lighting. With three modular sizes (M/L/XL) and full Lighting AI integration, it ensures efficient, connected, and sustainable illumination for streets, parks, and highways.
PIR sensor – basic motion lighting adaptation
Radar sensor – advanced motion lighting adaptation
Kamsens multi-sensor – multiple adapdation points
Weather condition sensors – rain / fog / snow adaptation
Photocell sensors – dusk to dawn adaptation
Compatible SENSORS
The sensors integrated into Mesina are connected to the NEOS remote management platform to ensure full control, monitoring, and optimization of the lighting operation schedule based on vehicle and pedestrian traffic presence or weather conditions, either automatically according to predefined programs or manually as needed. The intensity and color of the light are programmed to change automatically to enhance visibility.
Motion detection
PIR Motion Sensor
Detects movement through infrared radiation and enables intelligent lighting activation only when pedestrians or vehicles are present.
Advanced motion detection
Radar Sensor
Uses radar technology to detect movement accurately across wider areas and in changing weather or environmental conditions.
Urban intelligence
Kamsens multi-sensor
A complete seven-in-one sensor platform that combines intelligent lighting control, environmental monitoring and urban infrastructure insights.
The (Smart) Urban Ecosystem
Discover how our lightning
solutions integrate in the
Urbio Smart City Ecosystem
MESINA este proiectată să funcționeze ca parte a unui ecosistem inteligent și interconectat, depășind rolul unui simplu corp de iluminat. Fiecare echipament devine un nod activ într-o rețea urbană care comunică permanent cu celelalte dispozitive din infrastructură. Prin intermediul gateway-urilor dedicate și al platformei software proprietare MyNeos, toate sistemele sunt conectate într-o singură rețea unificată, oferind municipalităților control instantaneu asupra întregii infrastructuri de iluminat. Această arhitectură permite monitorizarea permanentă de la distanță, gestionarea în timp real a echipamentelor, colectarea și analiza datelor operaționale, precum și implementarea rapidă a strategiilor de optimizare pentru creșterea eficienței, siguranței și sustenabilității orașului.
Nema Based Infrastructure
Predictnet (LoRa) + PLC
Nema Based Infrastructure
Predictnet (LoRa) + PLC
Nema Based Infrastructure
Predictnet (LoRa) + PLC
Nema Based Infrastructure
Predictnet (LoRa) + PLC
MyNeos lighting.ai
Urbio’s Mesina System – the comprehensive lightning companion for the cities of the future – suitable for parks, pathways, residential streets, urban streets, boulevards, highways, motorways and large intersections.
CrossGuard CONNECTIVITY
CrossGuard CONNECTIVITY
CrossGuard connects its sensors, warning sign and Mesina luminaires through the central NEMA controller, creating one coordinated smart-crossing system. Depending on project requirements, the controller can use LoRa, GSM, Bluetooth and PLC communication to connect with Lighting AI, process sensor data locally and reliably transmit commands to every connected component.
