Smart Bus Station
Urbio’s Smart Bus Station – the integrated urban mobility hub for the cities of the future – suitable for public transport stops, urban mobility hubs, and high-traffic public areas.
Smart infrastructure for modern public transport.
Smart Bus Station
Urbio’s Smart Bus Station – the integrated urban mobility hub for the cities of the future – suitable for public transport stops, urban mobility hubs, and high-traffic public areas.
Modular configurations

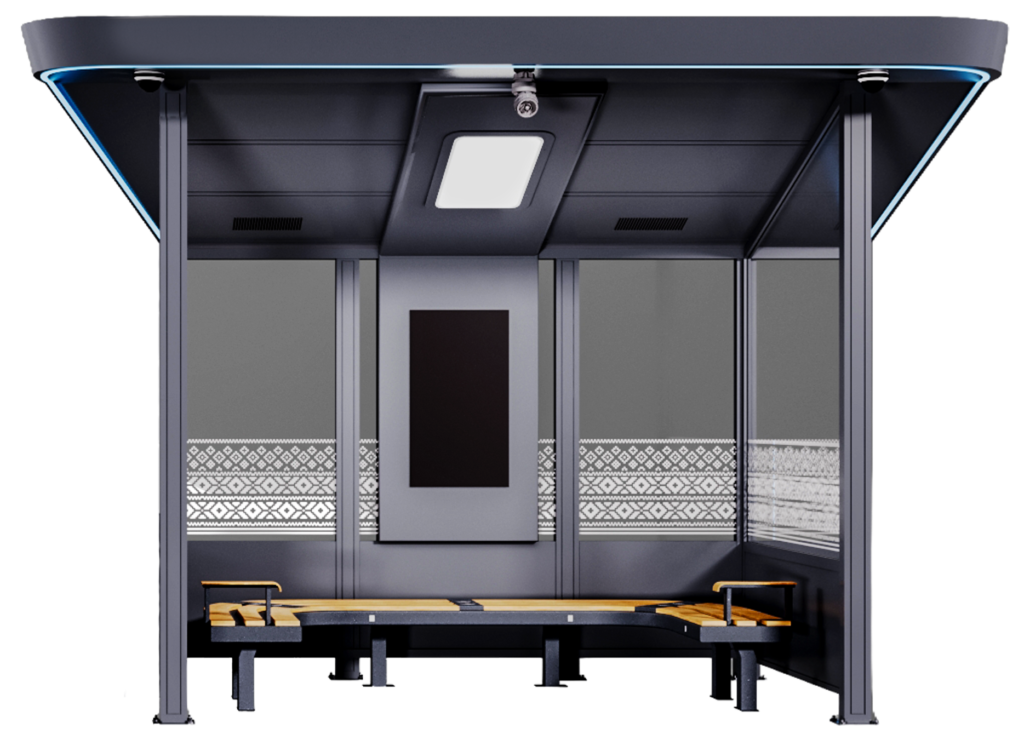

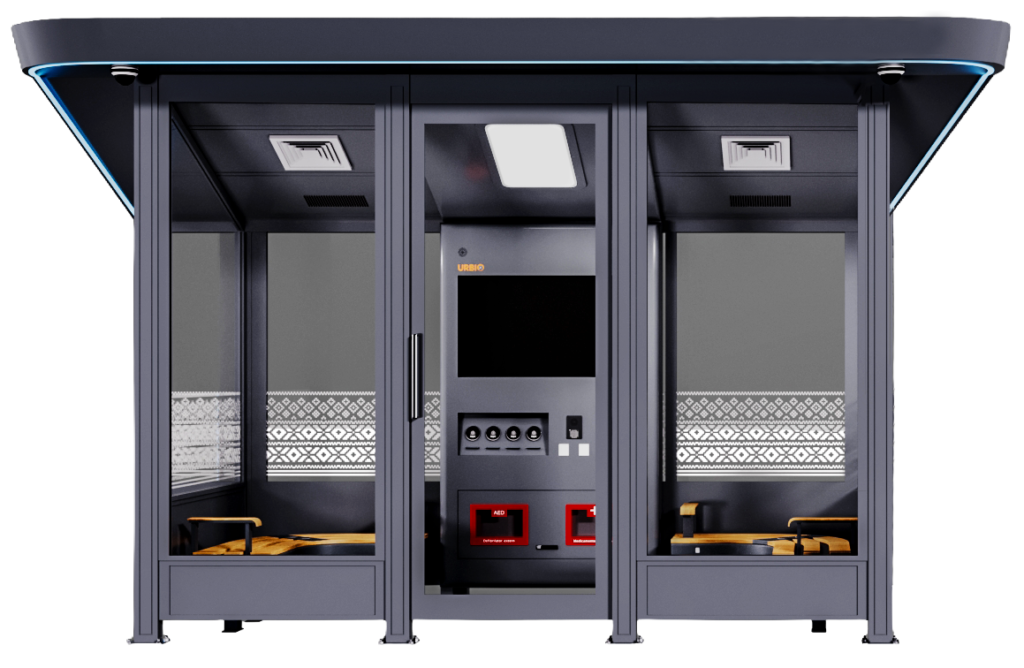

URBIO Smart Bus Station is a modular solution built from two module types — open and enclosed — which can be used individually or combined to meet the specific needs of each project. Compatible accessories can be added to extend functionality and integrate smart features.
Modular construction – select modules:
Bus Station Specifications
General and electrical specifications
| General specification | Smart Bus Station |
|---|---|
| Application | Public transport infrastructure |
| Structure Type | Modular – open and enclosed modules |
| Structure Material | Galvanized steel |
| Glass Panels | 10 mm tempered glass with UV protection |
| Power Supply | Hybrid – grid + photovoltaic |
| Input Voltage | 230 V AC / 50 Hz |

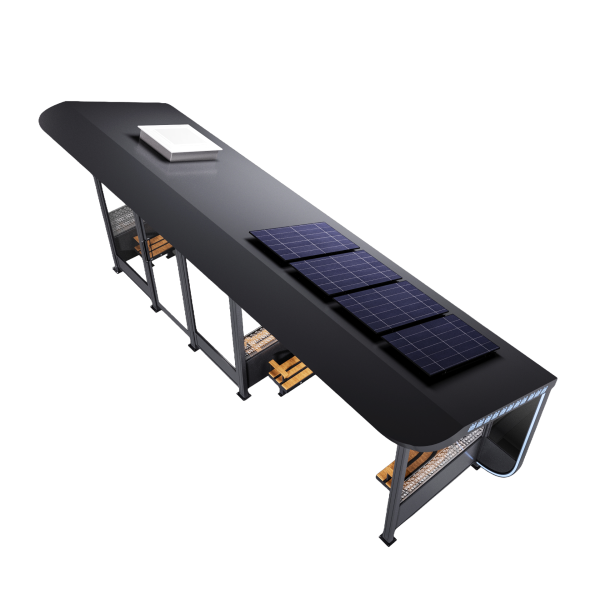

| Photovoltaic System | 4 × 410 W |
| Installed PV Power | Approx. 1.64 kW |
| Battery Type | LiFePO₄ |
| Inverter | 3 kW, pure sine wave |
| Operating Temperature | –20 °C to +50 °C |
Surveillance camera specifications
| Camera specification | Smart Bus Station |
|---|---|
| Camera Coverage | 360° |
| Camera Type | High-performance digital PTZ camera |
| Camera Resolution | 1920 × 1920 px |
| Frame Rate | 30 FPS |
| Night Vision | Built-in IR LED |
| Camera Sensor | 5 MP CMOS |
| Camera Enclosure | Aluminum alloy, polycarbonate and hard-coated dome |
| Mounting Materials | Polycarbonate and stainless steel |
| Weatherproofing | IPX4 |
| Impact Resistance | IK08 |
| Power Consumption | Maximum 8.64 W |
| Operating Temperature | -20°C to +40°C |
| Software | UniFi Protect for iOS and Android |
| Audio | Integrated microphone and speaker |
Lighting, audio and display systems
| System specification | Smart Bus Station |
|---|---|
| Lighting Type | Pure white, high-brightness LED |
| Light Emission | Even light emission |
| Lighting Resistance | Waterproof / Corrosion resistant / High-temperature resistant |
| Lighting Power | 17 W |
| Lighting Supply Voltage | 12 VDC |
| Lighting Protection | IP33 |
| IP Speaker Connectivity | Power over Ethernet (PoE) |
| IP Speaker Supply Voltage | 24 VDC |
| Bluetooth | Mobile phone Bluetooth compatibility |
| Volume Control | Remote volume adjustment |
| Speaker Stand-by Consumption | Maximum 2 W |
| LCD Screen Size | 32 inch |
| LCD Resolution | 1920 × 1080 px |
| LCD Characteristics | High-speed response / High luminance / Low reflection |
| Viewing Angle | Wide viewing angle |
| Additional Digital Display | 43 inch |
Charging facilities and materials
| Construction specification | Smart Bus Station |
|---|---|
| USB Charging | 3 W |
| Wireless Charging | 5 W / 7.5 W / 10 W / 15 W |
| Power Socket Output | 230 Vac |
| Power Socket Rated Current | 16 A |
| Main Structure | Galvanized steel pipes and sheets |
| Metal Components | Stainless steel and iron plates |
| Glazing | Tempered glass |
| Additional Materials | Acrylic board and plastic wood |
| Compliance | RoHS compliant display system |
Smart equipment and optional features
| Smart feature | Available equipment |
|---|---|
| Climate Control | All-season climate control |
| Renewable Energy | Solar panels |
| Multifunctional Sensor | Kamsens sensor |
| Motion Detection | Radar sensor |
| Video Surveillance | 360° surveillance camera |
| Passenger Safety | Panic button |
| Emergency Equipment | Medical kit / Defibrillator |
| Connectivity | Wi-Fi connectivity |
| Audio | IP speaker / Crystal-clear loudspeaker |
| Passenger Information | 32-inch screen / 43-inch digital display |
Downloads
The technical documentation also confirms RoHS compliance.
Smart Bus Station review
and features of Urbio’s
Smart Bus Stations.
Discover the design and features of Urbio’s Smart Bus Stations.

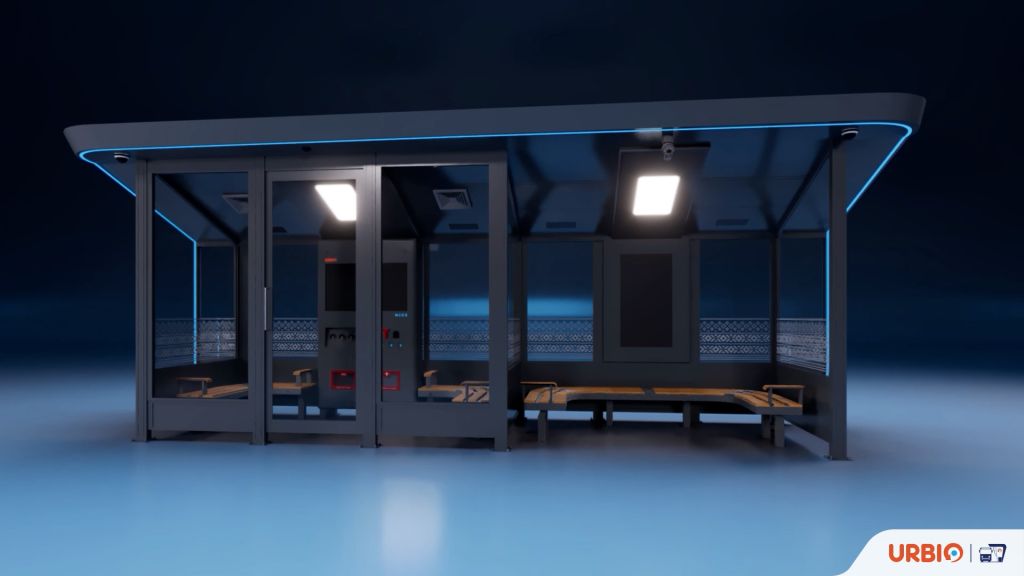

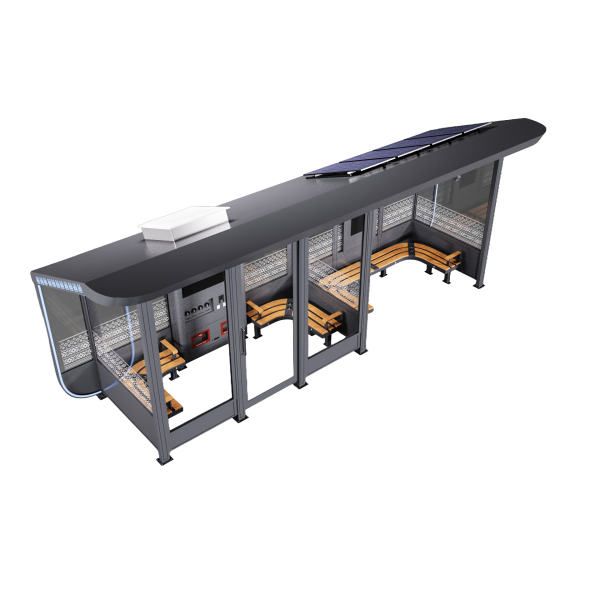

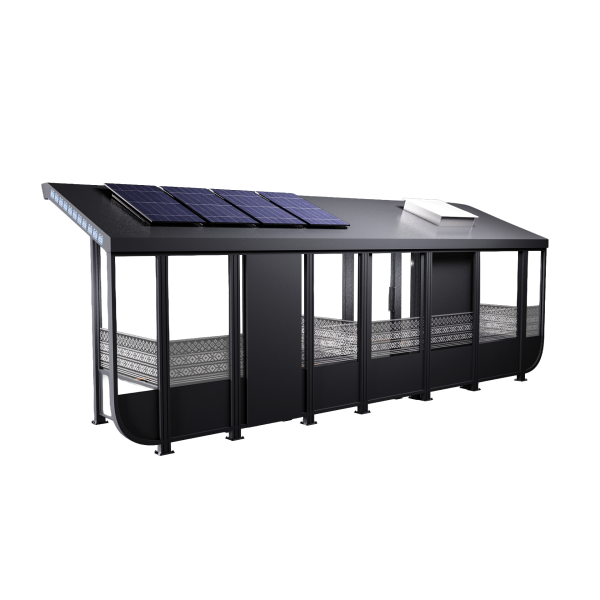

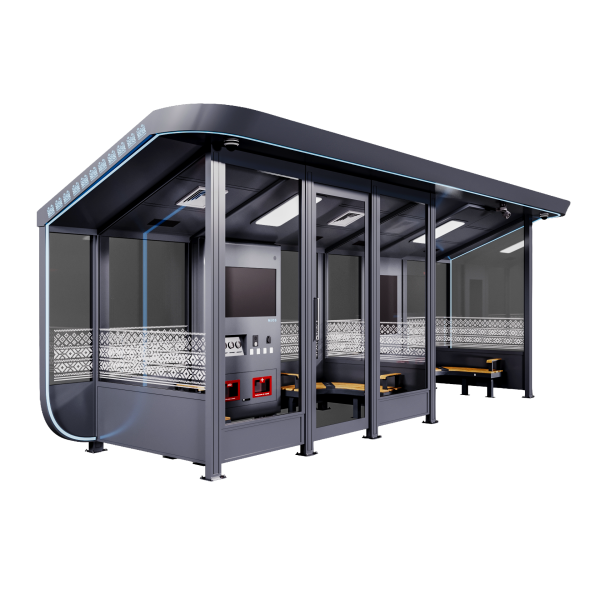

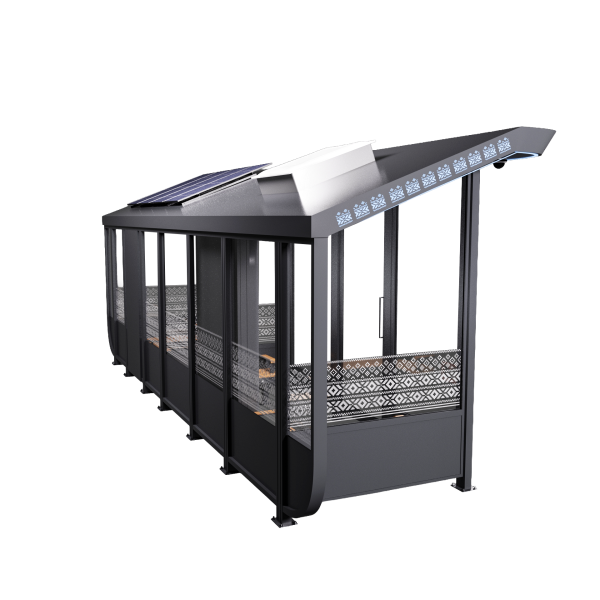

BUS STATION Design
BUS STATION Design
URBIO Smart Bus Station combines a contemporary architectural form with carefully integrated functional details. Curved geometry, architectural LED lighting and decorative glass elements create a distinctive identity designed to complement modern urban environments.
Mobility reimagined for modern cities.
Smart Bus Station Benefits
URBIO Smart Bus Station combines modular design, advanced safety features and smart technologies to improve the passenger experience and simplify urban infrastructure management. Designed for modern public transport networks, it brings connectivity, information, safety and essential passenger services into one integrated solution.
Enhanced Passenger Safety
Fully Modular & Customizable
Highly customizable - multiple controllers, sensors
and accessories available. Remote management ready
Highly customizable - multiple controllers, sensors and accessories available. Remote management ready
Certified in all variants
and configurations
Ultra smart and
ultra durable

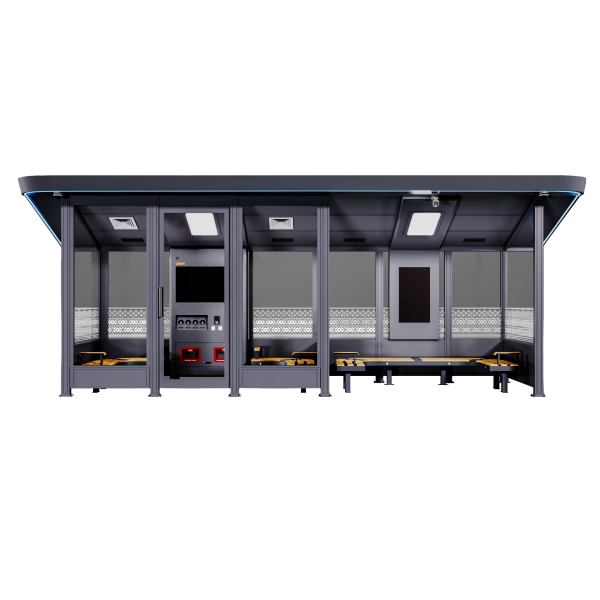

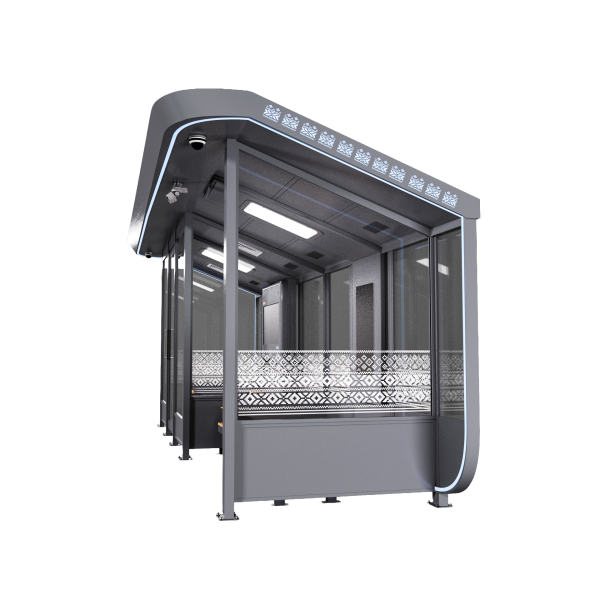

MODULAR Construction
MODULAR Construction

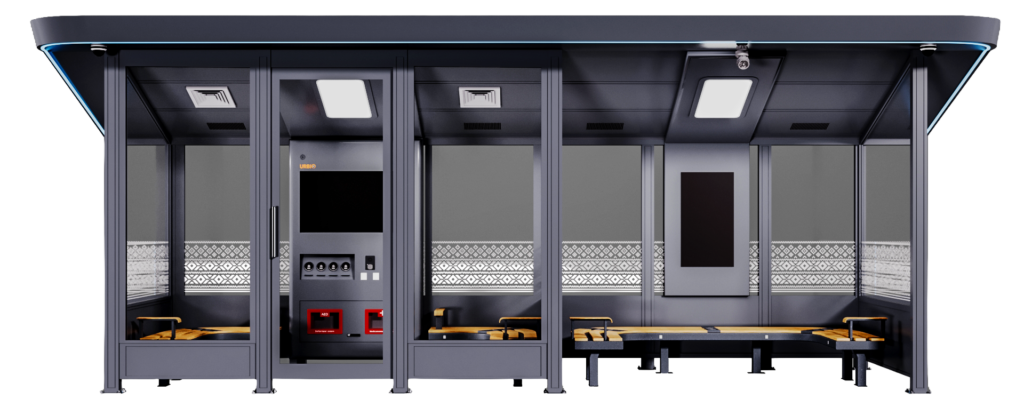

Its modular architecture consists of two modules that can be used individually or combined to create a complete Smart Bus Station. The modules enable countless configurations, adaptable to the specific requirements of each project. Accessories are presented below.

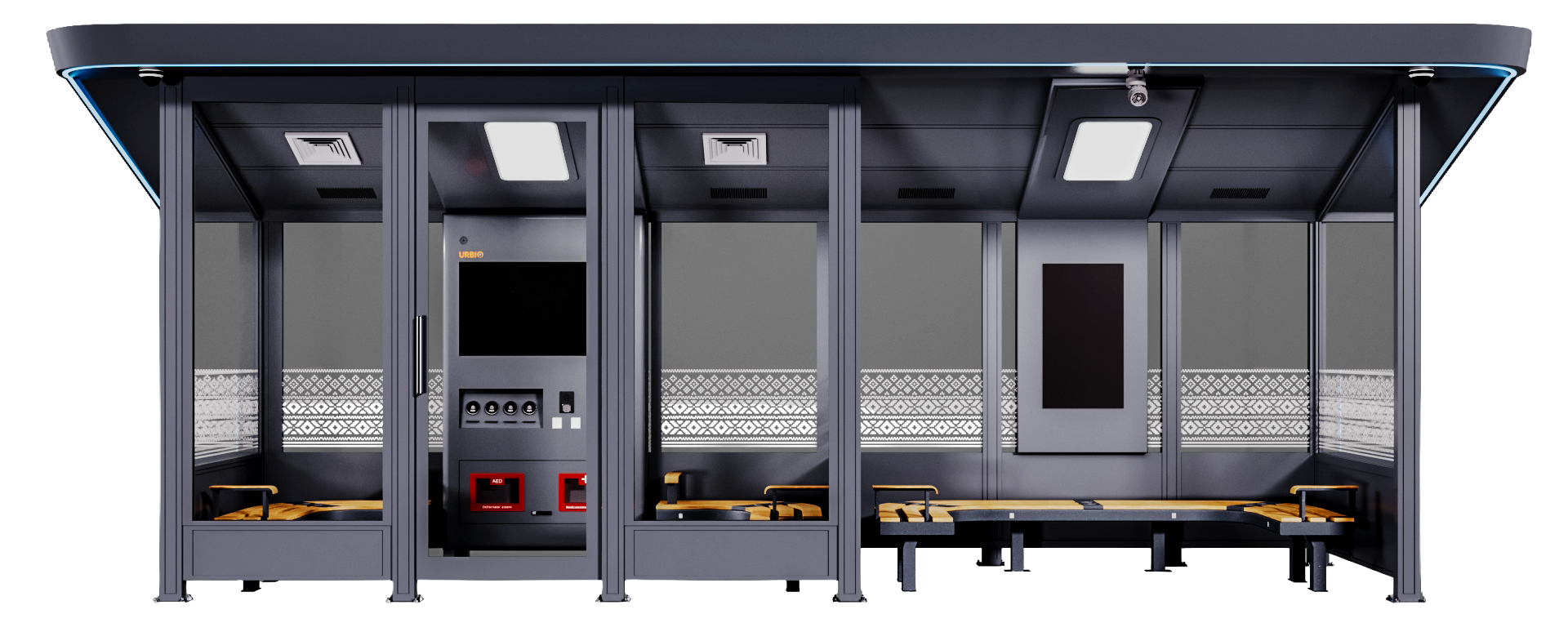

Tap or click any point to explore the bus station’s features.
Learn how you can make
your Mesina luminaire smart!
MODULAR Construction
It’s modular architecture consists of three modules that can be used individually or combined to create a complete Smart Bus Station. The modules enable countless configurations, adaptable to the specific requirements of each project. Accessories are presented below.
01
Surveillance Camera
A high-resolution surveillance camera providing continuous monitoring of the station and its passenger area.
02

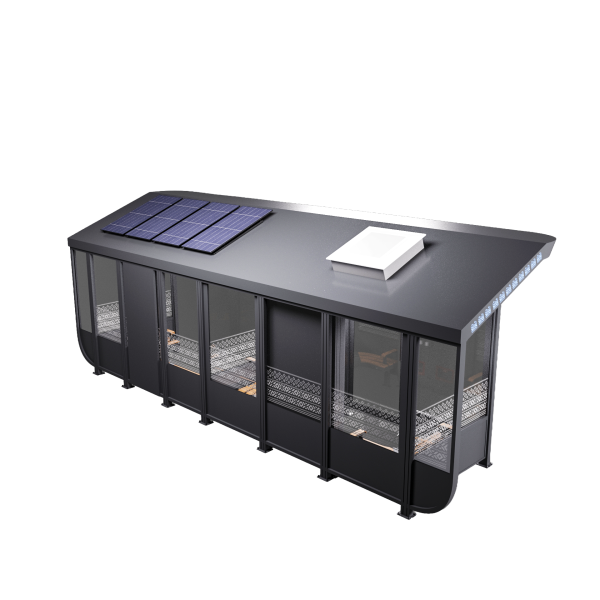

Solar Panels
Detects passenger presence and movement accurately, enabling automated lighting, monitoring and energy-saving functions.
03
Radar Sensor
Detects passenger presence and movement accurately, enabling automated lighting, monitoring and energy-saving functions.
04
All-Season Climate Control
The integrated HVAC system maintains a comfortable passenger environment throughout hot summers and cold winters.
05

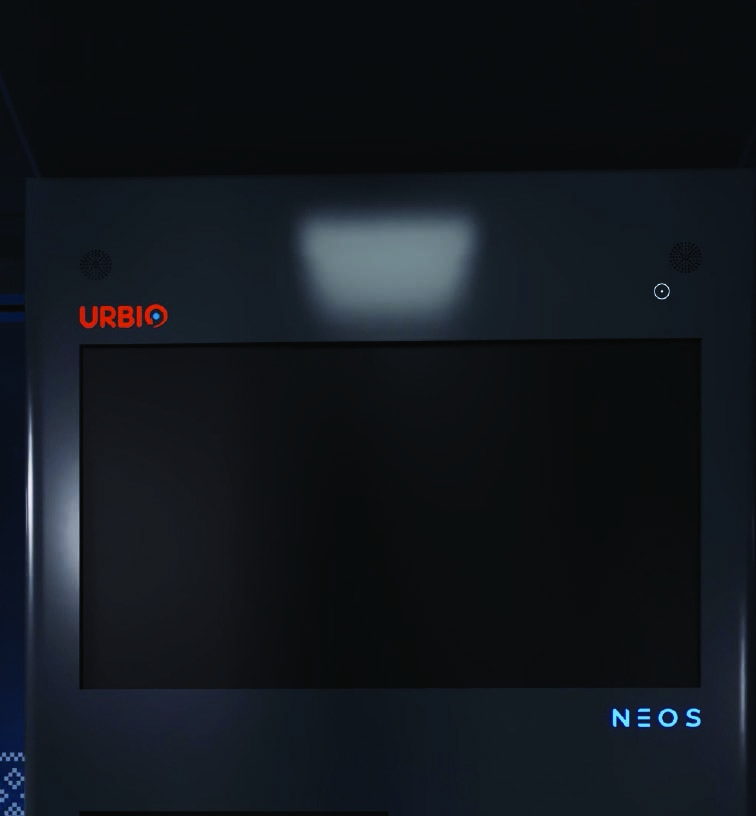

32-Inch Digital Screen
A vertical digital screen for transport information, public announcements, wayfinding and commercial content.
06
Kamsens Multifunctional Sensor
A multifunctional smart-city sensor collecting environmental, operational and passenger-area data in real time.
07
Crystal-Clear Loudspeaker
Delivers clear passenger information, public announcements and emergency audio throughout the station.
08
IP Speaker
A network-connected speaker supporting remote announcements, scheduled messages and emergency communication.
09
43-Inch Digital Display
A high-visibility display for live arrivals, route information, city messages and digital advertising.
10
Panic Button
Provides passengers with immediate access to emergency assistance and direct communication with the control centre.
11
WiFi Connectivity
Provides wireless internet access for passengers and network connectivity for the station's smart systems.
12

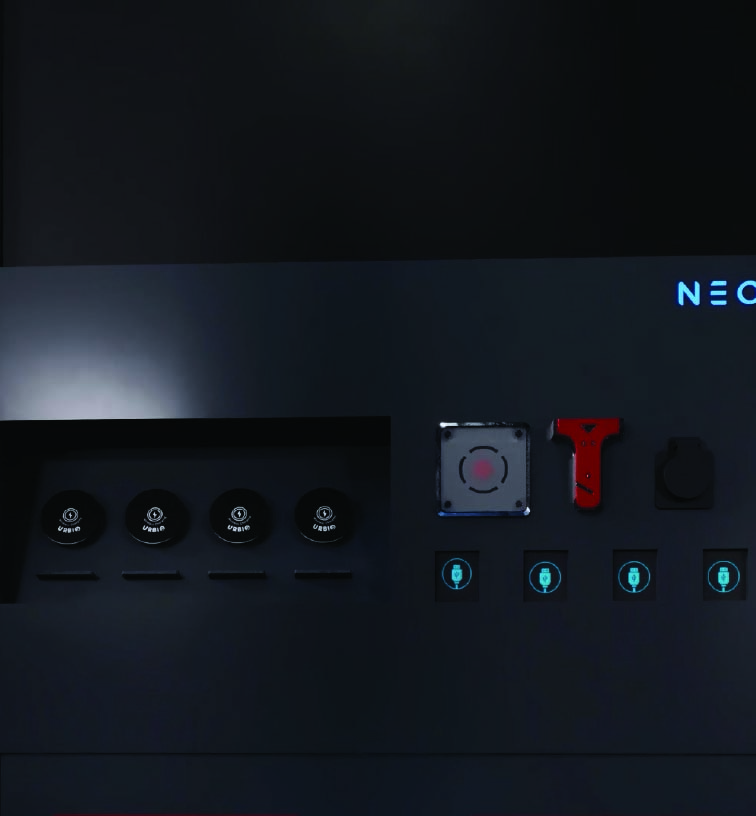

230V Power Sockets
Standard mains power connections allow passengers to charge laptops and other compatible electronic devices.
13
USB Chargers
Integrated USB charging ports provide convenient power for mobile phones, tablets and personal devices.
14
Wireless Charging
Cable-free charging surfaces integrated into the passenger seating allow compatible devices to charge wirelessly.
15
Medical Kit
An accessible first-aid kit provides essential supplies for minor injuries and immediate medical response.
16

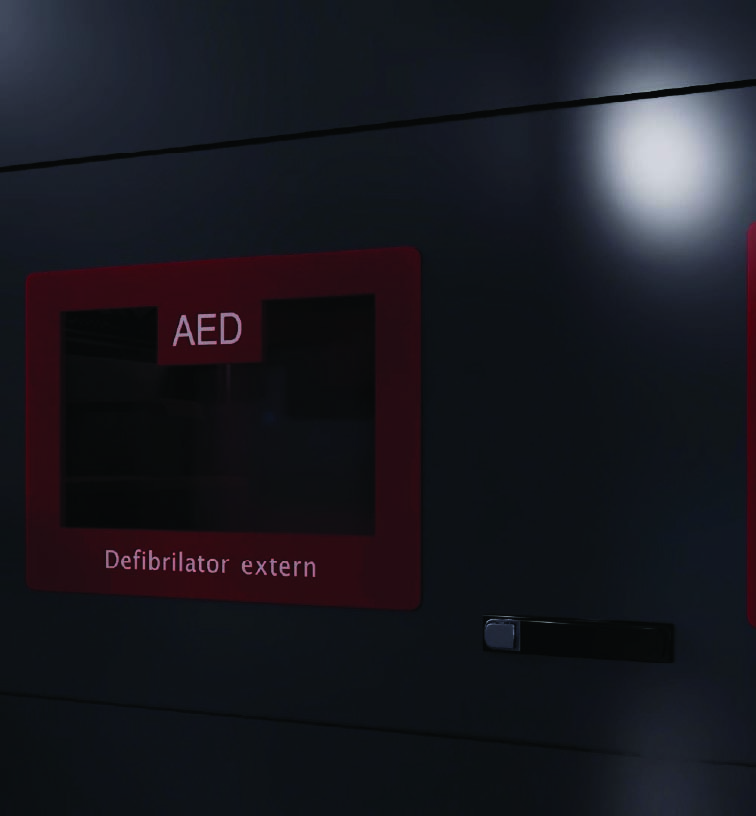

Defibrillator
A public-access automated external defibrillator supports rapid intervention during cardiac emergencies.
17
LED-Illuminated Tempered Glass
Durable tempered-glass panels combine refined decorative details with integrated LED illumination for visibility and safety.
18
Interior LED Lighting
Efficient ceiling-integrated LED luminaires provide uniform, comfortable and energy-efficient lighting inside the station.
19
Passenger Seating
Durable modular seating provides a comfortable waiting area and can integrate charging and smart-city accessories.
Configure your BUS STATION
Configure your
BUS STATION
Select the desired features and export your configuration as a PDF to request further information and personalized assistance from our consultants.
Your configuration
Configuration summary.
Your selected options will appear here.
Compatible CONTROLLERS
Compatible CONTROLLERS
The Smart Bus Station combines dedicated controllers and communication systems to connect all station functions to the Lighting AI remote management platform. The NEMA Controller manages intelligent lighting functions, MCTP provides on / off control of connected station accessories, while the Gateway links both controllers to Lighting AI through LoRa PredictNet and PLC communication. A wired internet connection supports public Wi-Fi, CCTV monitoring, displays, audio systems and emergency equipment, allowing these services to be monitored and controlled centrally through Lighting AI.
Smart lighting control
NEMA Controller
The NEMA Controller manages all intelligent lighting functions of the Smart Bus Station. Connected to Lighting AI, it enables complete remote lighting control and allows the lighting system to adapt automatically using connected sensors.
Smart Bus Station accessory control
MCTP
MCTP provides on / off control for the connected accessories of the Smart Bus Station. Through the Gateway, the controller can be operated remotely from Lighting AI.
Lighting AI connectivity
Gateway

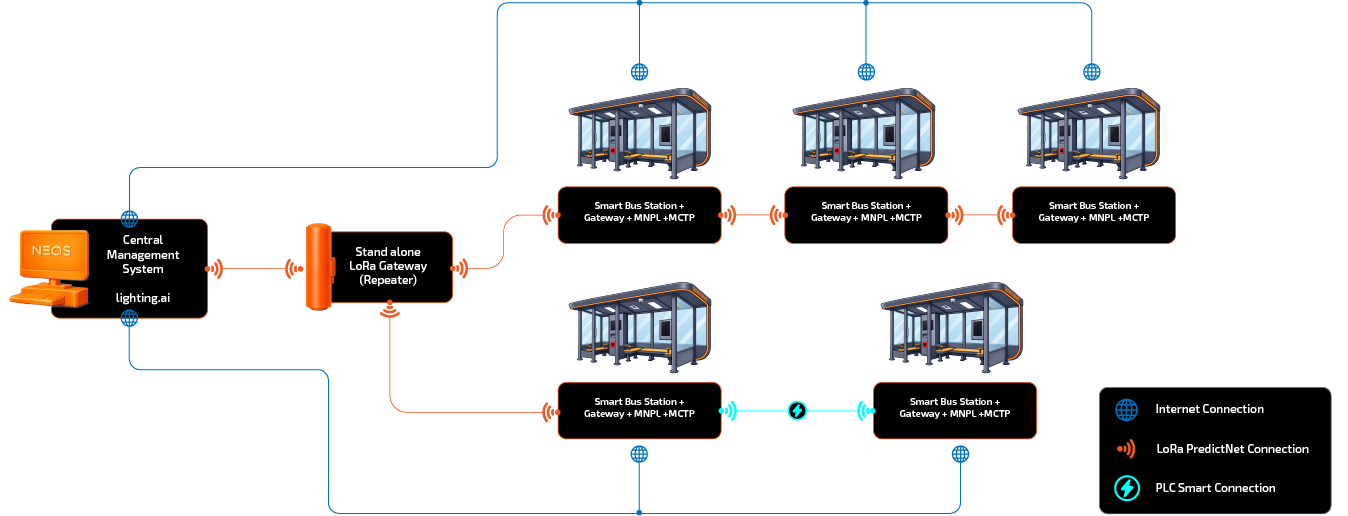

The Gateway connects the Smart Bus Station to Lighting AI through the LoRa PredictNet network. It acts as the communication node between Lighting AI and the NEMA and MCTP controllers installed inside the station.
Smart Bus Station internet connectivity
Internet Connection
The Smart Bus Station uses a wired internet connection for its connected digital services. These systems can be monitored and controlled remotely through Lighting AI.
Compatible SENSORS
Compatible SENSORS
Compatible SENSORS
Smart bus station sensors provide real-time motion and weather data, enabling controllers and Lighting AI to automatically optimize light intensity and color for enhanced visibility, safety, and comfort.
Smart station intelligence
Kamsens multi-sensor
A seven-in-one multifunctional sensor that transforms the Smart Bus Station into a responsive urban infrastructure hub, combining passenger detection, environmental monitoring and intelligent system control.
Passenger presence detection
PIR Motion Sensor
Detects passenger movement through infrared radiation and activates the Smart Bus Station lighting only when people are present in or around the shelter.
Advanced approach detection
Radar Sensor
Uses radar technology to detect approaching passengers and vehicles across a wider area, delivering reliable operation in changing weather and low-visibility conditions.
