Advanced motion and traffic sensing
Radar Sensor
Urbio’s Radar Sensor uses RADAR / FSK technology to detect presence and movement while also measuring speed, direction and traffic activity. Integrated with smart lighting and city-management systems, it provides the real-time data needed for adaptive lighting, traffic monitoring and data-driven urban operation.
Advanced motion and traffic sensing
Radar Sensor
Urbio’s Radar Sensor uses RADAR / FSK technology to detect presence and movement while also measuring speed, direction and traffic activity. Integrated with smart lighting and city-management systems, it provides the real-time data needed for adaptive lighting, traffic monitoring and data-driven urban operation.
Radar Sensor
Reliable detection. Richer traffic data. Beyond simple motion sensing, the Radar Sensor analyzes movement characteristics in real time, including speed and direction, while identifying and classifying traffic participants. This enables more advanced lighting responses and provides valuable traffic data for connected smart-city applications.
Compatible Urbio Equipment:
Radar Sensor Specifications
General specifications
| General specification | Radar Sensor |
|---|---|
| Product | Radar Motion Detection Sensor |
| Product Code | SRADAR |
| Application | Smart public lighting, traffic monitoring and smart-city management applications |
| Detection Technology | RADAR / FSK |
| Detection Function | Detects presence and movement |
| Traffic Classification | Identifies, classifies and reports traffic participants |
| Speed Measurement | Measures and reports movement speed |
| Direction Detection | Displays and reports direction of movement |
| Traffic Analytics | Supports traffic heatmaps and detailed traffic volume counting |
| Detection Speed Range | 1–100 km/h |
| Day / Night Adjustment | Approx. 10–100,000 lux |
| Maximum Mounting Height | Up to 20 m |
| Supply Voltage | 5 V DC / 12 V DC / 24 V DC |
| Maximum Power Consumption | 0.5 W |
| Communication | DALI (DALI-2) / RF 2.4 GHz |
| Communication Range | Up to 200 m |
| Communication Security | Encrypted communication (AES-128) |
| Operating Temperature | –40°C to +85°C |
| Maximum Relative Humidity | 95% |
| Maximum Altitude | 2000 m |
| Expected Lifetime | 7 years |
| CE Marking | Yes |
| Housing Material | Polycarbonate |
| Enclosure Protection | IP66 |
| Electrical Protection Class | Class II |
| Identification | QR Code |
Product Compatibility
| Urbio Equipment | Radar Sensor | PIR Sensor | KAMSENS Multi-Sensor |
|---|---|---|---|
| Mesina Luminaires | ✓ | ✓ | ✓ |
| Moon Luminaires | ✓ | ✓ | ✓ |
| Dome Luminaires | – | – | – |
| Smart Pole | ✓ | ✓ | ✓ |
| Smart Bus Station | ✓ | ✓ | ✓ |
| Smart Bench | – | – | – |
Downloads
Radar motion detection sensor
Discover the advanced
traffic detection solution
for smart city tech.
Discover the advanced traffic detection solution for smart city tech.
Radar Sensor FEATURES
Radar Sensor FEATURES
The Radar Sensor provides reliable real-time detection of presence and movement using RADAR / FSK technology. Combined with Urbio controllers and Lighting AI, it becomes the foundation for automatic lighting adaptation, traffic analysis and centralized control across connected urban lighting infrastructure.
Radar-Driven Lighting
Lighting That Responds to Real-Time Movement
The Radar Sensor detects presence and movement using RADAR / FSK technology, providing real-time input that allows connected luminaires to automatically adapt their light output as activity changes.
Connected Intelligence
Controlled Through Lighting AI
Lighting AI combines radar-driven lighting control with real-time traffic information, allowing operators to configure lighting behavior while gaining valuable insight into movement across the urban environment.
Automatic lighting adaptation
Traffic based lighting adaptation
The Radar Sensor detects presence and movement while also measuring speed and direction. This real-time traffic data is sent to the connected lighting controller, allowing nearby luminaires to automatically adapt their light output according to activity levels and predefined lighting rules. As traffic decreases, lighting can return to lower levels for more efficient operation.
Radar Sensor CONNECTIVITY
Radar Sensor CONNECTIVITY

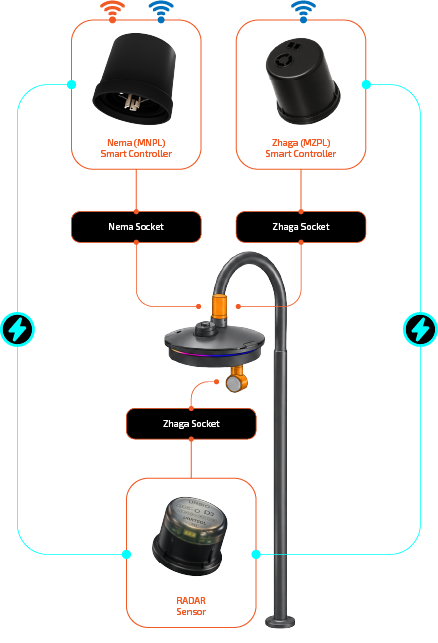

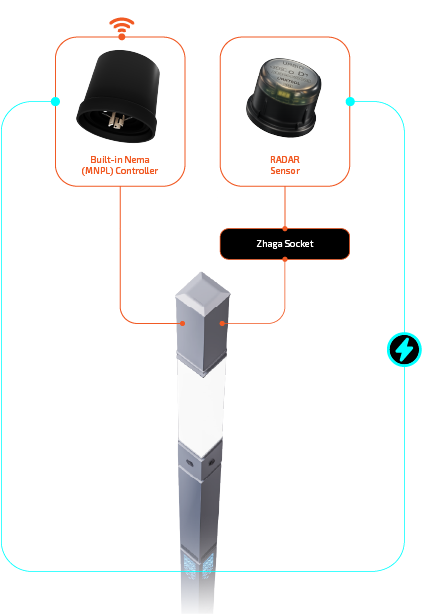

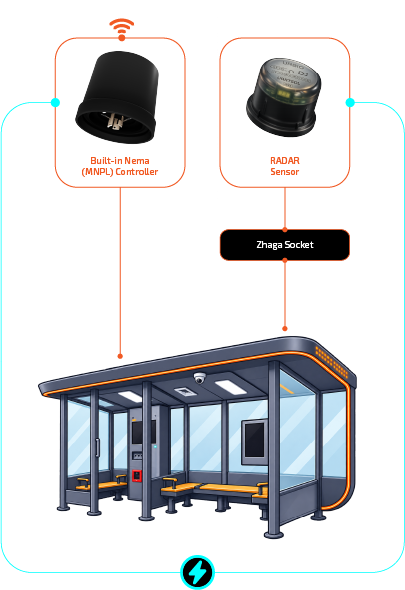

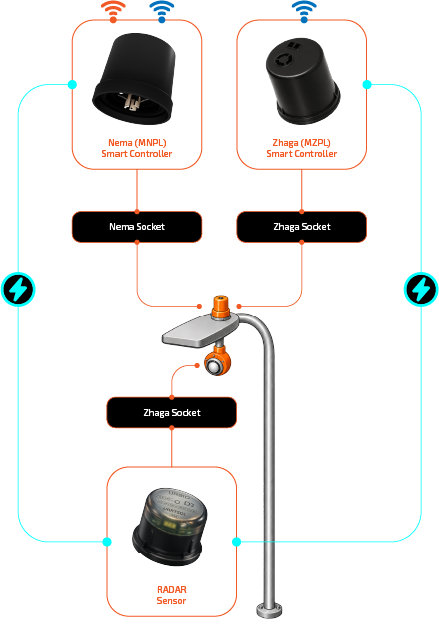

The Radar Sensor connects directly to selected Urbio luminaires through a standardized Zhaga socket, providing a compact and reliable interface for sensor integration. Once connected, the sensor communicates through DALI-2 and RF 2.4 GHz, allowing movement, speed, direction and traffic data to be used by the lighting controller for automatic lighting adaptation and connected smart-city functions. Compatibility is available across selected Urbio lighting models and smart-city equipment.
