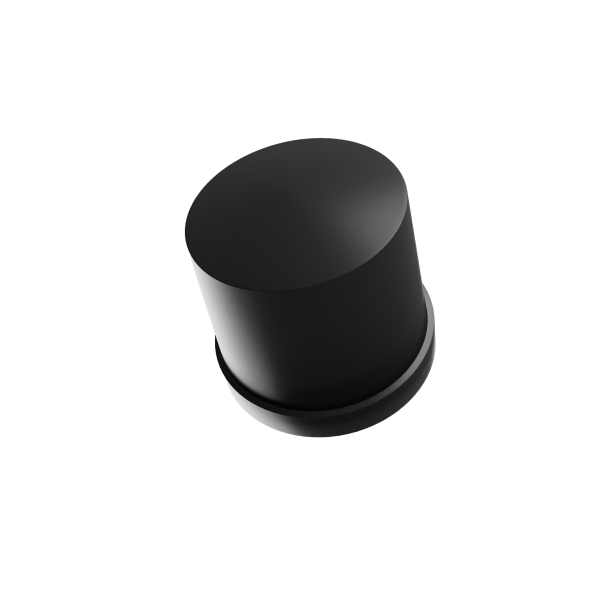

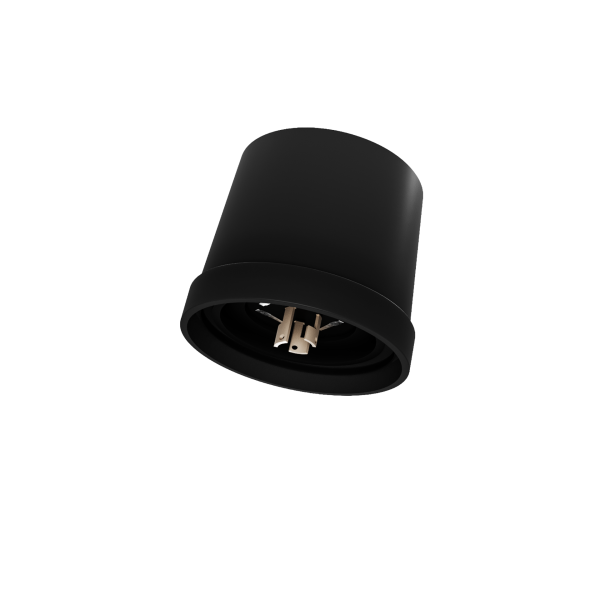

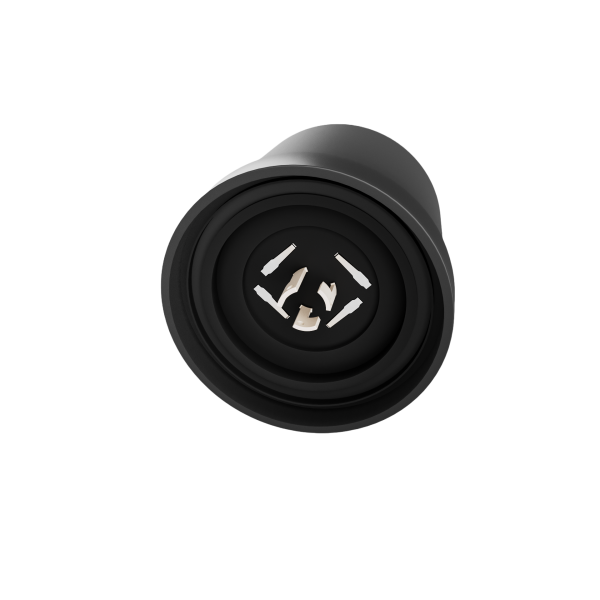

Nema Controller
URBIO Nema Controller (MNPL) provides intelligent control for modern street lighting systems. It enables remote ON/OFF control, dimming, color temperature adjustment, scheduling and adaptive lighting based on traffic, environmental conditions and connected sensors.
Compatible Urbio Equipment:
Nema Controller (MNPL) Specifications
General specifications
| General specification | NEMA (MNPL) Controller |
|---|---|
| Product | MNPL – Smart NEMA Light Point Module |
| Application | Smart lighting control and connectivity |
| Lifetime | 100,000 hours (estimated based on solid-state components) |
| Warranty | 5 years |
| Lighting Control | Real-time remote lighting adjustment |
| Switching & Dimming | Programmable switching and dimming, 0–100% |
| Supported Interfaces | DALI, DALI-2 and D4i commands |
| Adaptive Automation | Adaptive lighting automation through integrated sensors |
| Voltage | 220–240 V AC |
| Frequency | 50–60 Hz |
| Operating Current | 25 mA |
| Power Consumption | 5 W |
| Mounting Type | NEMA socket |
| Enclosure Protection | IP66 |
| Impact Resistance | IK10 |
| Electrical Class | Class II |
| Temperature Sensor | –30°C to +70°C |
| Light Sensor | 1–40,000 lux |
| Speed Sensor | 1–100 km/h |
| Tilt Sensor | ±90° on 3 axes (±2° tolerance) |
| Dimensions | 84 × 75 × 100 mm |
| Housing Material | UV-treated polycarbonate |
Product Compatibility
| Urbio Equipment | Current Model NEMA (MNPL) Controller | Zhaga (MZPL) Controller |
|---|---|---|
| Mesina Luminaires | ✓ | ✓ |
| Moon Luminaires | ✓ | ✓ |

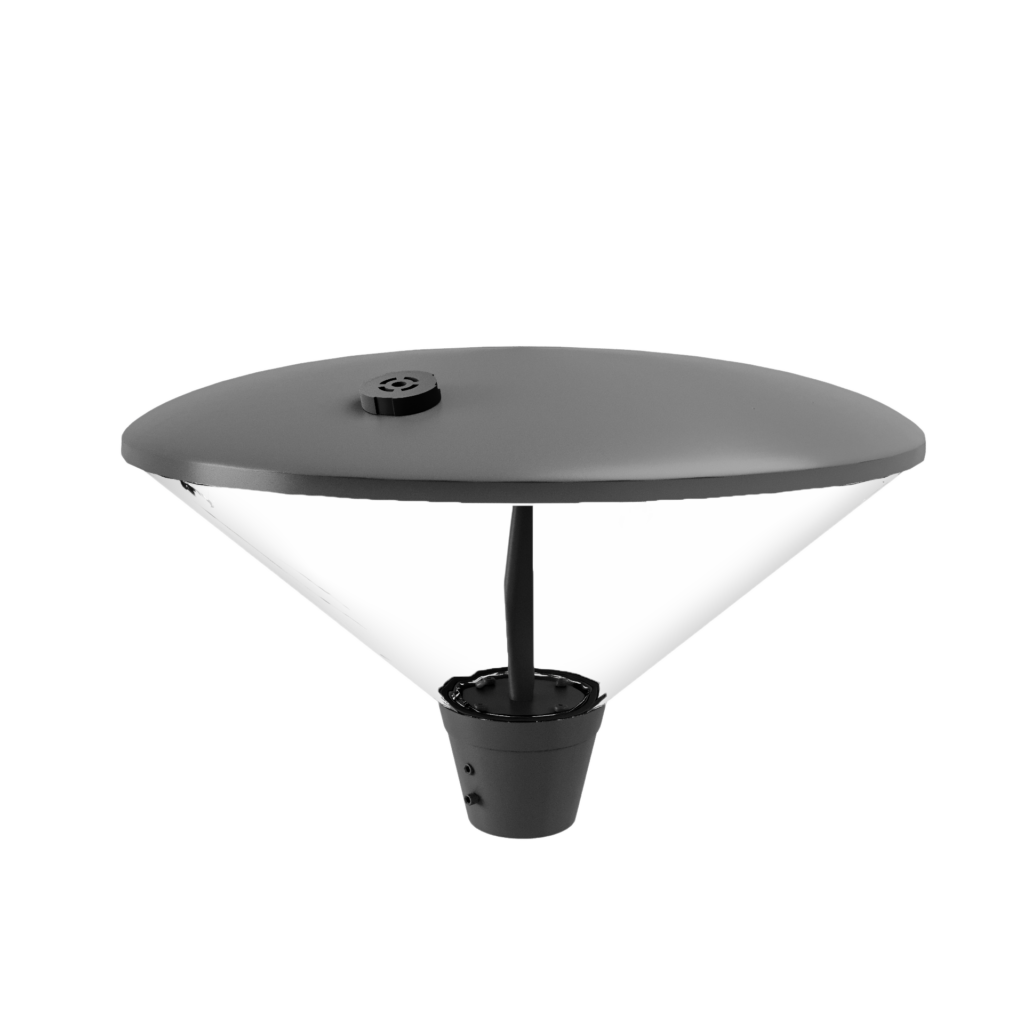

| Dome Luminaires | ✓ | ✓ |
| Smart Pole | Integrated | – |
| Smart Bus Station | ✓ | – |
| Smart Bench | – | – |
Nema Controller
Discover the bridge
between the smart devices
and the Lighting AI CMS.
Discover the bridge between the smart devices and the Lighting AI CMS.
One controller. Full Control.
One controller. Full Control.
The NEMA (MNPL) Controller is designed to work across compatible Urbio luminaires, Smart Poles and Smart Urban Furniture, providing a unified control layer for lighting operation, sensor interaction and communication with Lighting AI. One controller architecture enables consistent control and connectivity across the entire Urbio ecosystem.
Urban lightingMoonSmart decorative lighting for streets and pedestrian areas.
Nema (MNPL) FEATURES
Nema (MNPL) FEATURES
The NEMA (MNPL) Controller combines lighting scheduling, total control, automatic lighting adaptation and connectivity with Lighting AI in a single device, enabling centralized management of compatible Urbio luminaires and smart equipment.
Lighting Scheduling
Lighting Schedules Defined Through Lighting AI
Define when lighting switches on, switches off and changes intensity through configurable schedules created in Lighting AI and executed by the NEMA Controller.
Total Lighting Control
Total Control for Urbio's Smart Equipment
Control every lighting function directly from Lighting AI. Through the NEMA Controller, operators can switch luminaires on or off, adjust light intensity, configure color temperature and define how lighting responds to connected sensor inputs.
Sensor-Driven Lighting
Lighting That Automatically Adapts to Its Environment
Configure adaptive lighting behavior through Lighting AI and let the NEMA Controller automatically adjust the luminaire according to information received from KAMSENS, PIR and radar sensors.
CMS Connectivity
The Communication Link to Lighting AI

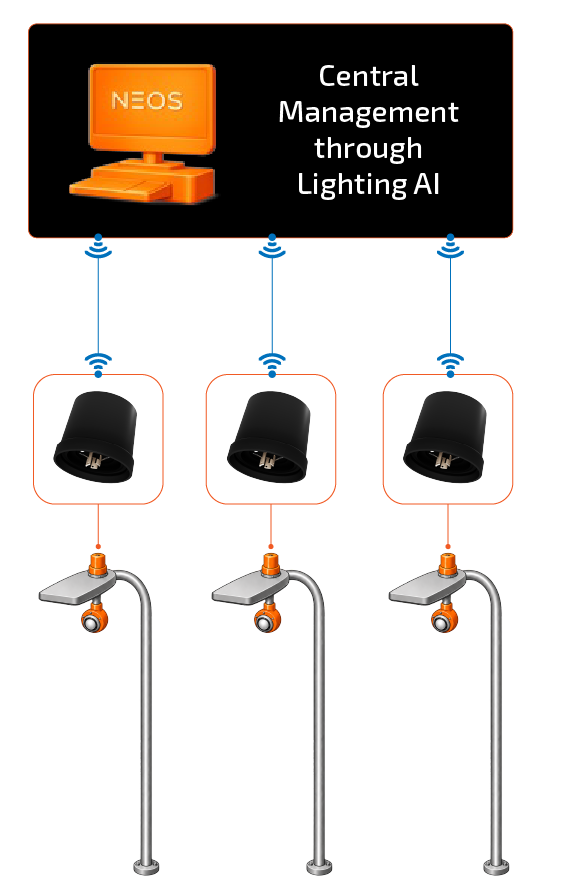

Beyond lighting control, the NEMA Controller provides the communication link between Urbio equipment and the Central Management System (CMS), enabling remote control, configuration and monitoring through Lighting AI.
Nema (MNPL) CONNECTIVITY
Nema (MNPL) CONNECTIVITY

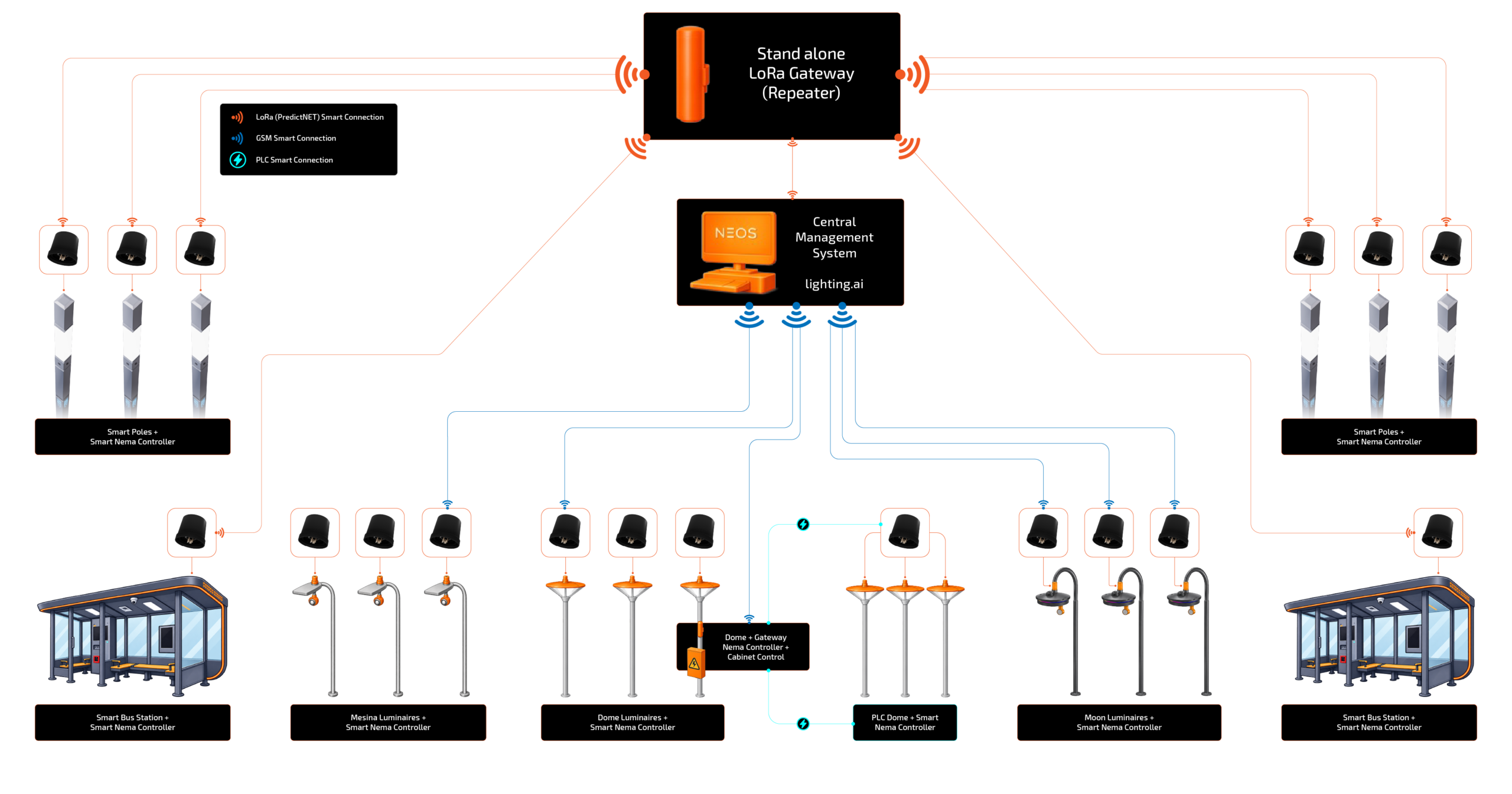

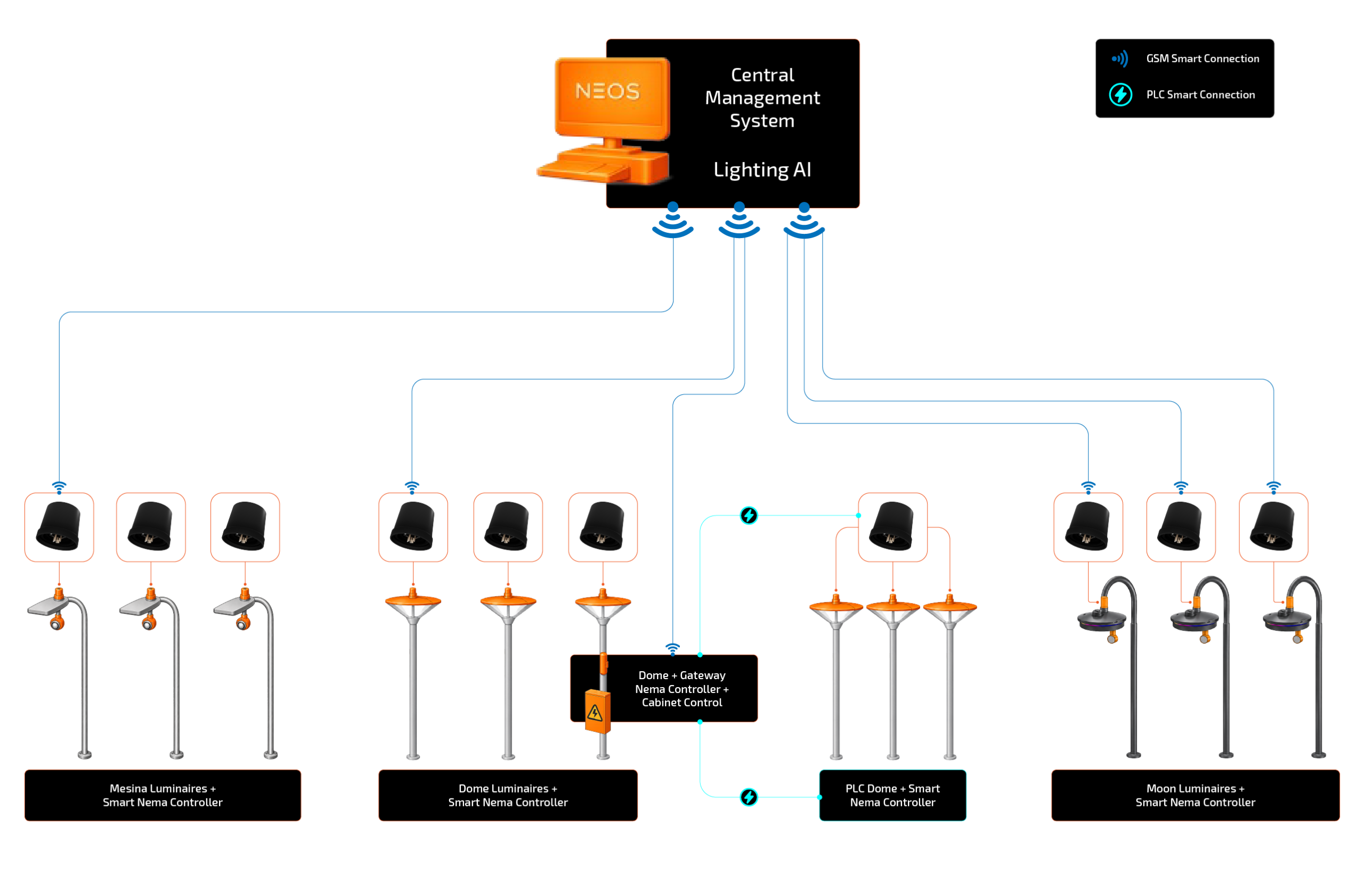

Beyond controlling the lighting component of Urbio equipment, the NEMA Controller also provides the communication link between each device and the Central Management System (CMS) through range extending gateways, enabling remote control and monitoring through Lighting AI. Urbio luminaires can communicate via both LoRa and GSM, while Smart Urban Furniture and Smart Poles use LoRa connectivity exclusively.
